整合了DO160 S22等級3, 和 MIL461G CS117 等級1 的间接雷电波形发生器

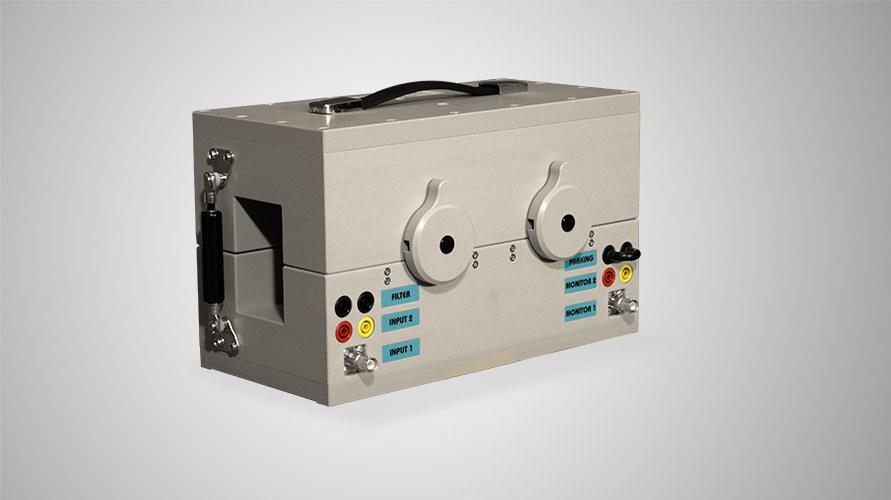

配合独立开发的单个耦合夾,即可滿足间接雷击测试需求
›› MIL-STD-461 : CS117, Level 1 (內部裝置)
›› RTCA DO-160 : Section 22, Level 3
›› EUROCAE ED-14: Section 22, Level 3
间接雷电波形发生器
可输出波形1,2,3,4,5A,6单次雷击、多次雷击和多重脉冲
满足RTCA/DO-160第22章节等级3测试要求
满足MIL-STD-461中CS117内部设备测试要求
AVI-LV3是模組式设备,內部包括 DO-160 Section 22 和MIL-461G:CS117测试。
可用测试模式:针脚注入,电缆注入和地注入
可產生波形:
Waveform 1 (6.4/69μs) cable induction
Waveform 2 (0.1 and 0.3/6.4μs) cable induction
Waveform 3 (1MHz & 10MHz) pin injection , cable induction
Waveform 4 (6.4/69μs) cable induction, pin injection, ground injection
Waveform 5A (40/120μs) cable induction, pin injection
Waveform 6 (0.25/4μs) cable induction

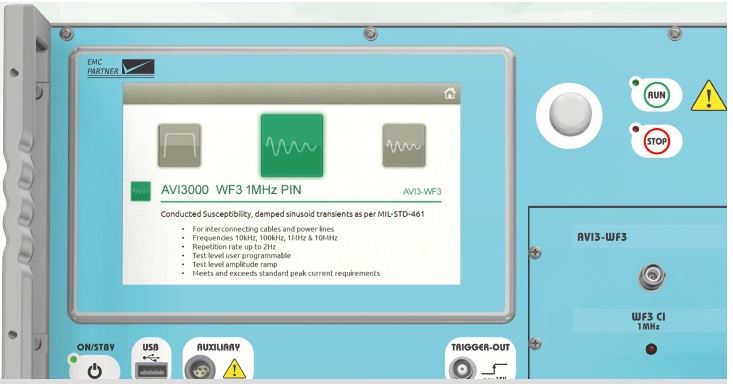

中文/英文操作介面/彩色触屏屏幕
